1966 427 Corvette

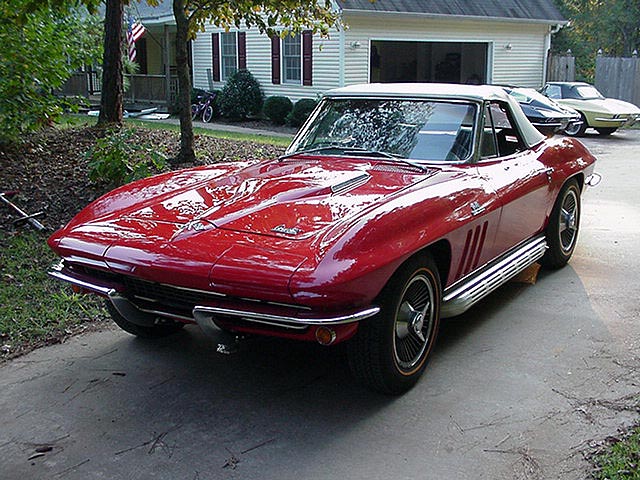

1966 Corvette 427 Roadster: L72 425hp-427, M21 4-speed, G81 4.11 posi,  A02 tinted windshield, A82 headrests, C07 hardtop, F41 HD suspension, J50 power brakes, K66 trans ign. N14 side pipes, N40 power steering, P48 Knock off's,  T01 Goldlines, U69 am-fm radio (orig  radio delete car), V74 hazard flasher 402 black leather int.

am66vtframefront.jpg (85380 bytes)am66vtframefront2.jpg (83678 bytes)am66vtframerear.jpg (76538 bytes)am66vtfrmdf.jpg (77189 bytes)\

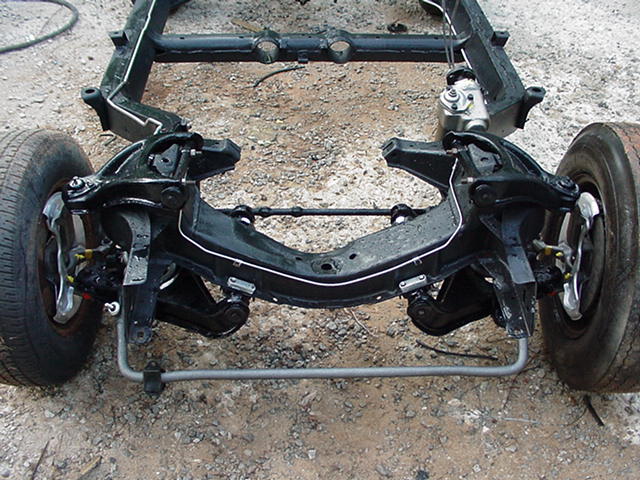

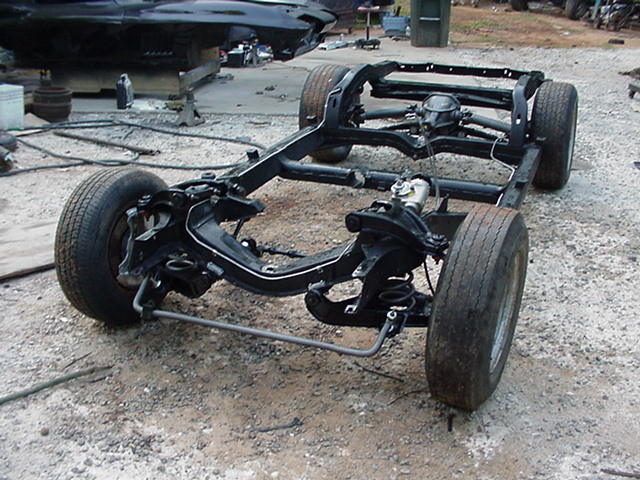

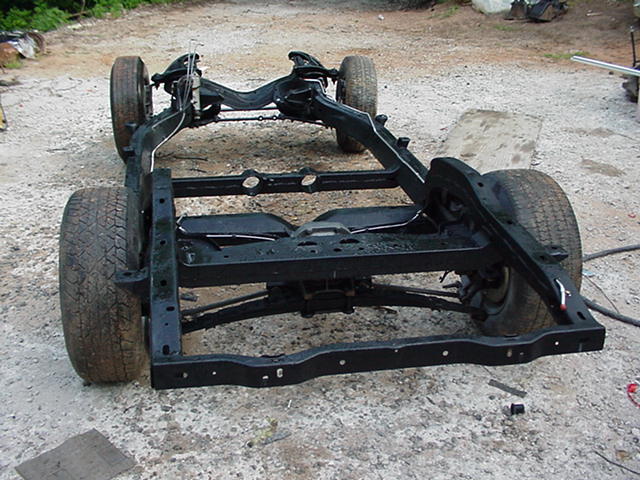

Restoration started with the frame. New fuel and brake lines, all new/rebuilt suspension, rebuilt rear trailing arms, correct 15/16 F41 front sway bar, correct 7-leaf  F41 rear spring,  new Delco shocks, new body mounts, ect. Frame is very nicely detailed. frame was just washed for pics and looks to have pitting, it is just the water on the frame, the frame is nice and any pitting on the frame is minor

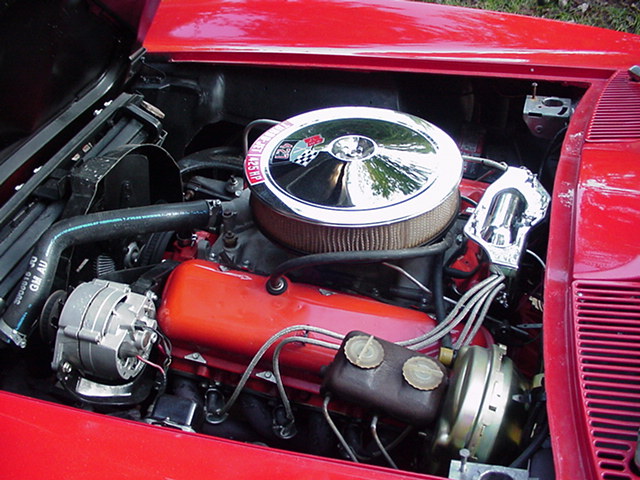

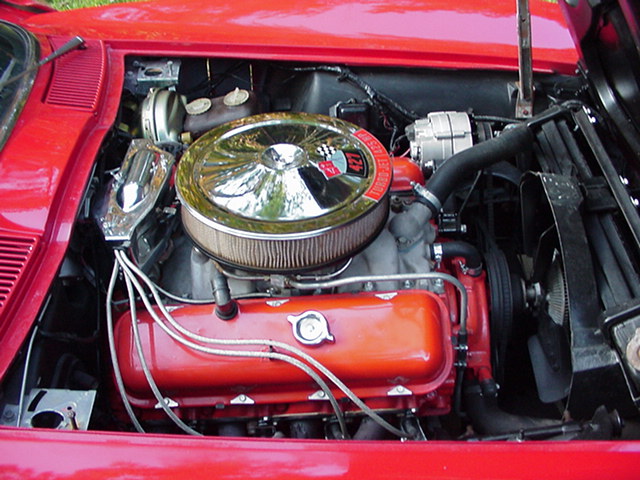

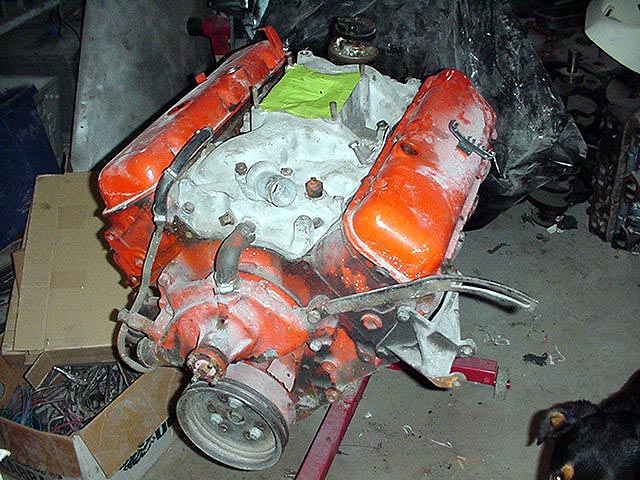

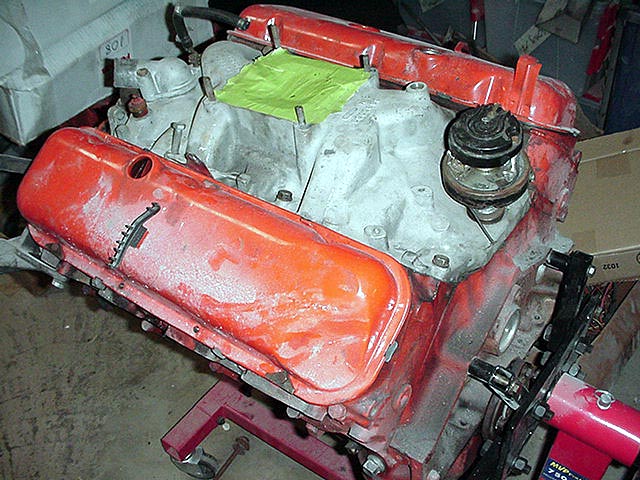

Before pics of engine as removed from car. Engine is the correct 3869942 cast  IP coded orig correct dated 427, Now rebuilt, complete with correct 3885069 intake. Engine is .030 over, TRW forged pistons, balanced, arp rod bolts, new oil pump, valvetrain, gaskets, correct orig 3873858 heads, rebuilt w/new stainless valves, new guides, new springs, hardened seats, surfaced, 3 angle valve job, gasket matched and chambers cleaned up for use on today's fuel. ect. Engine has non orig carb (currently has a reed built holley), and it has new side pipe headers instead of manifolds. Block casting date B186, heads dated C166 and D26, intake dated 3-6-66. Engine runs very very strong.

car has its correct orig shifter and all 4-speed parts and rebuilt dated M21 transmission. Nice TI distributor, new clutch, correct drive shaft, both tops, new radiator, correct 66 master cylinder, booster, side pipe covers and spears, nice stainless, rechromed bumpers, new door handles, complete matching lock and keys, and lots and lots of little things, most all parts are correct dated parts for this car.

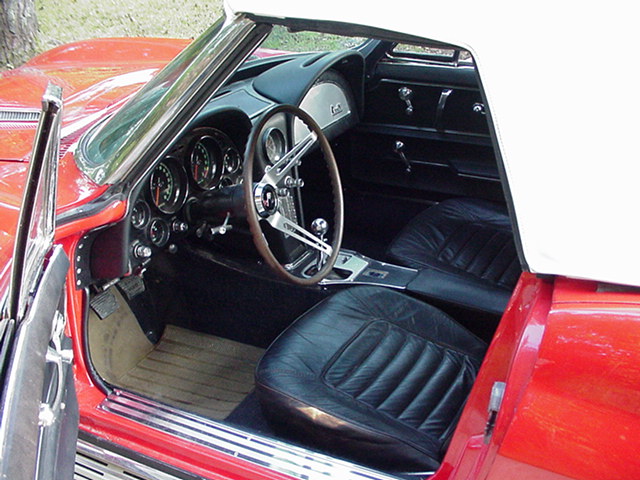

Car has a complete new int. includes, carpet, leather seat covers, headrests, door panels, dash pads, sill plates, screw kit, rear conv panels, top, visors, nice steering wheel, restored cluster

This car is an orig 427-425hp car, other known orig factory options are PS, PB, 2-tops, TI, 4-speed, sidepipes, tinted windshield, and posi. added options are headrests, am-fm and leather. orig color was silver w/black vinyl int.

66L72dfprim.jpg (127889 bytes)66L72drprim.jpg (142074 bytes)66L72pfprim.jpg (133773 bytes)66L72prprim.jpg (122084 bytes)

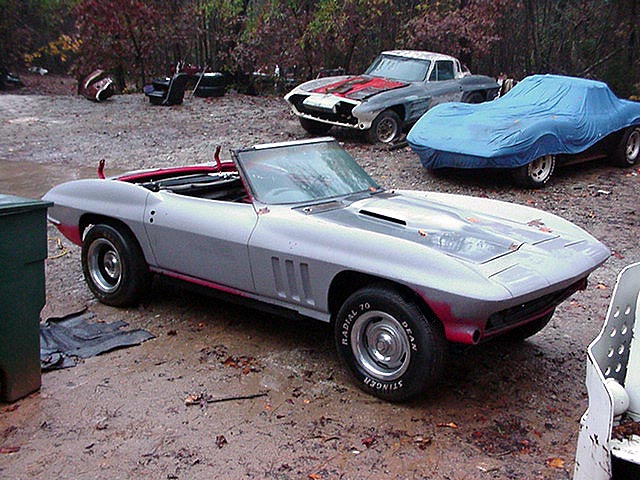

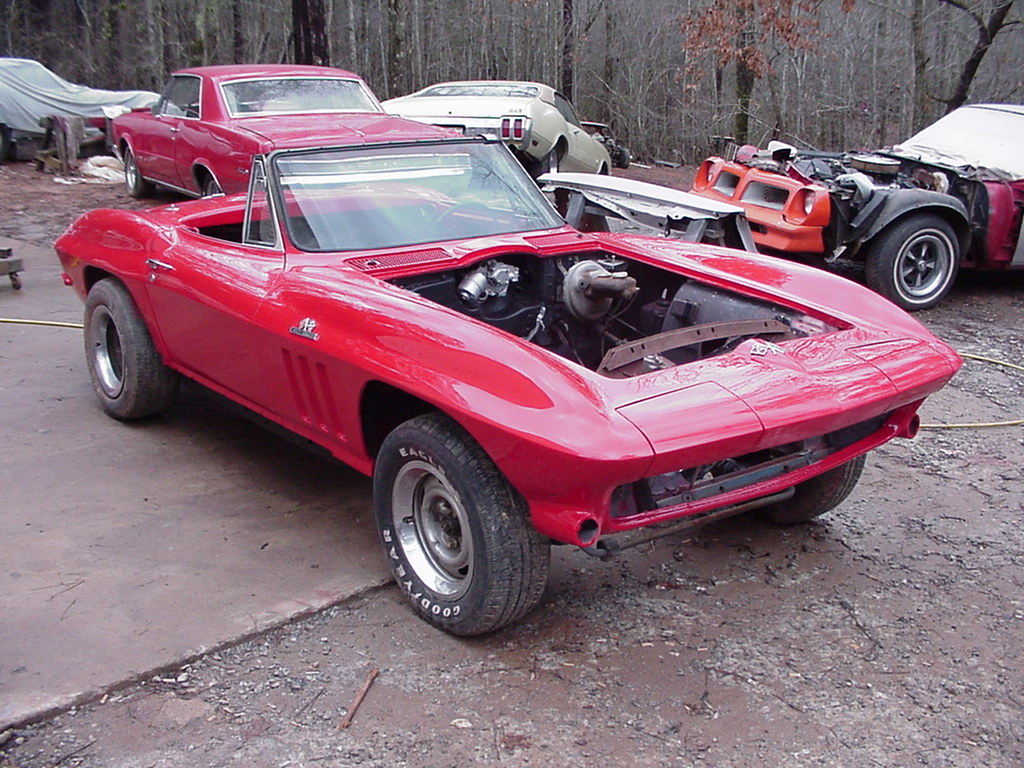

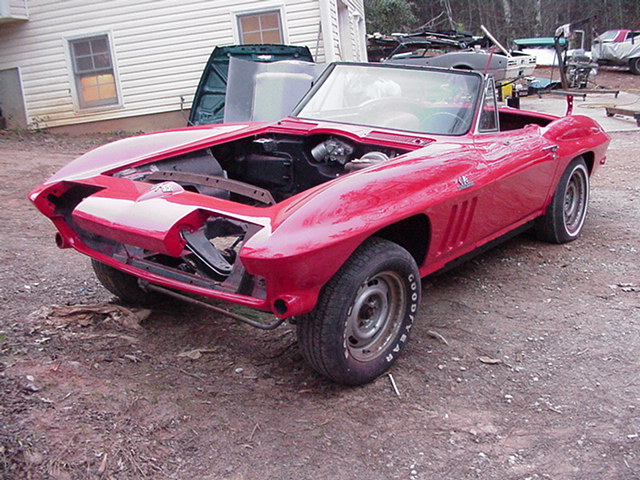

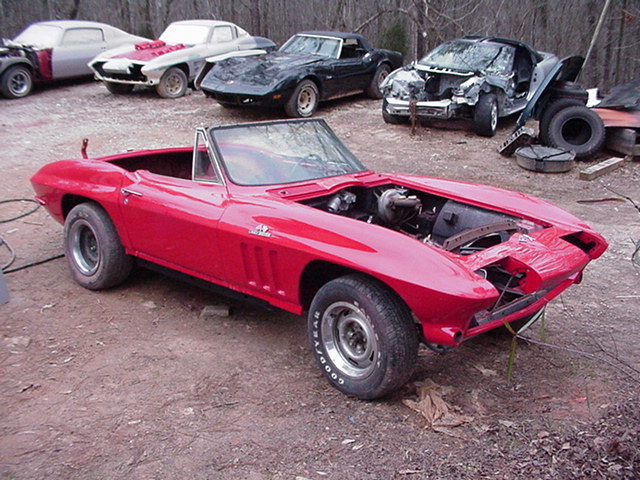

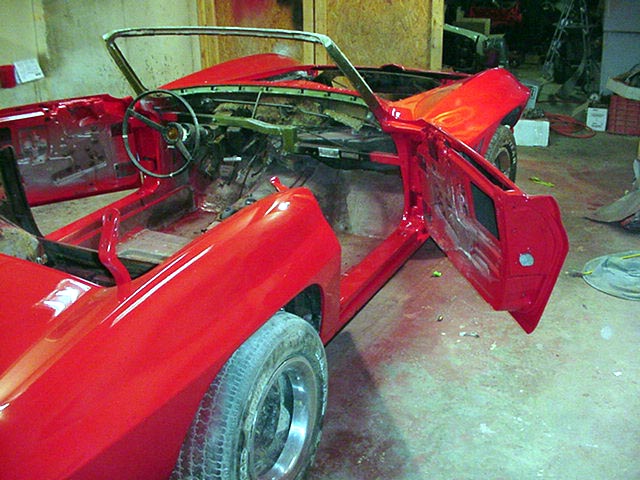

Here are pics of the body mounted back on the frame w/all new mounts. Body was disassembled, body work done and finished in fresh red PPG concept urethane. Door, headlight, hood and rear hatch fits are excellent.

66l72dfp.jpg (122334 bytes)66l72rearp.jpg (157157 bytes)66l72pfp.jpg (118231 bytes)66l72djpb.jpg (115473 bytes)1966L72pr.jpg (236270 bytes)1966L72pf.jpg (264174 bytes)

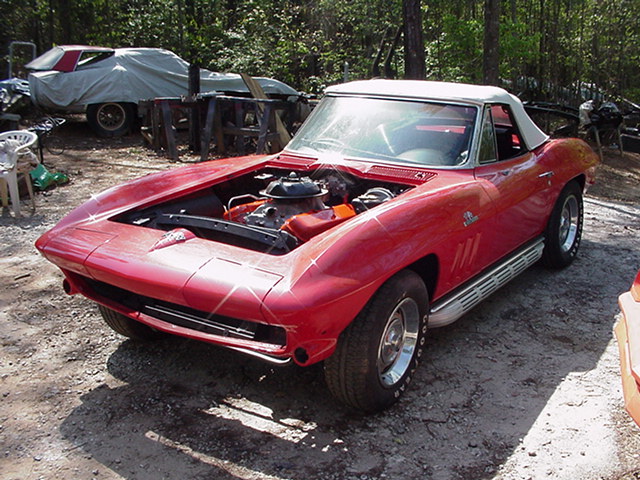

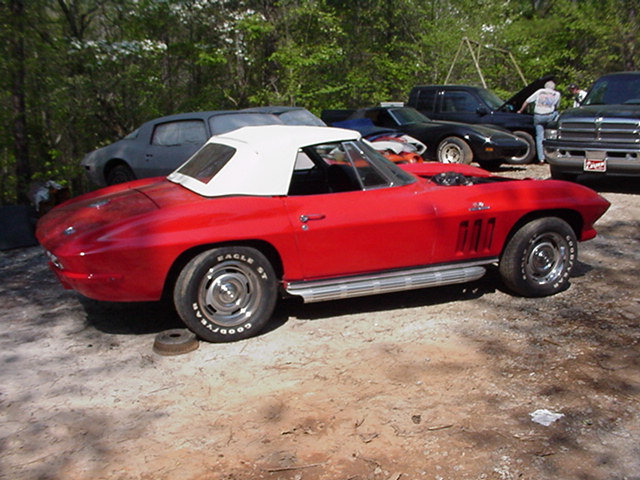

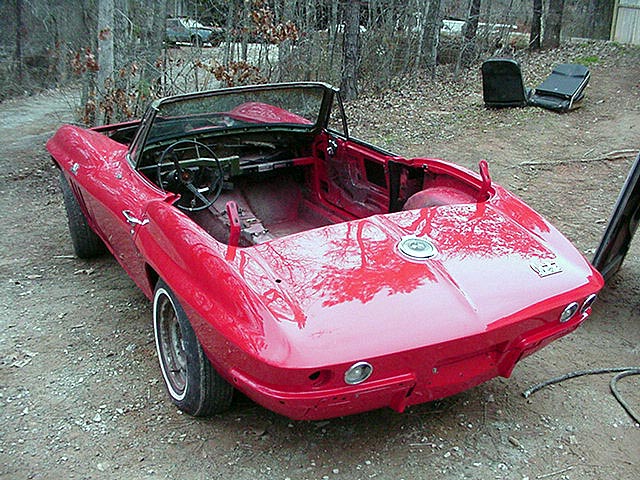

Pics of headlights, valance, hatch and wiper grills installed on the car. New white soft top installed, new weather-strips, windshield stainless polished and installed, all glass in car, dash installed, seats recovered, wiring harnesses installed. new gas tank and sender installed, nice spare tire tub, sidepipe covers and spears installed, engine compartment painted and being detailed for upcoming engine installation.

66L72df.jpg (125457 bytes)66L72eng1.jpg (102047 bytes)L72eng.jpg (111038 bytes)66l72passr.jpg (98401 bytes)

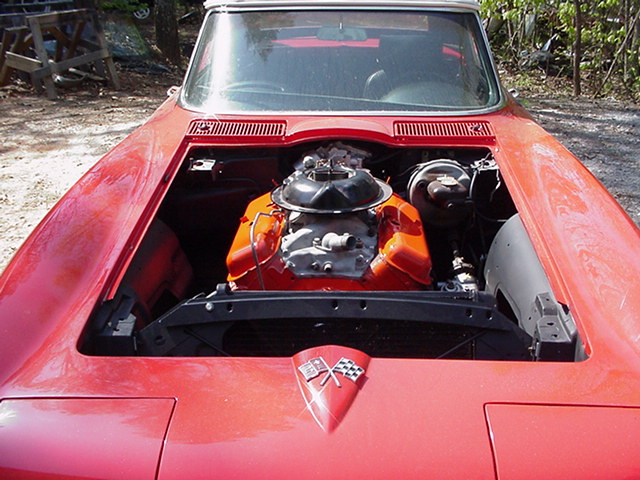

Pics of engine and trans installed in the car. shifter installed, engine harness now installed, Transistor ignition now installed, radiator and shroud installed. new hose clamps, spring ring cables, dated plug wires, ect.
