1967 Corvette

327 350hp roadster



Replacing a mid year hood surround...

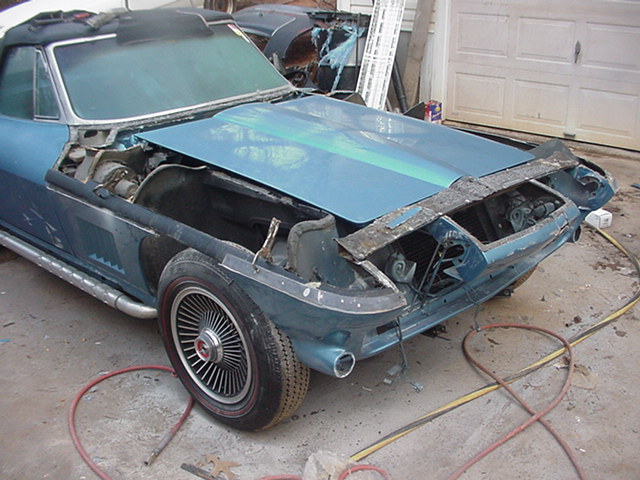

gk67dfns.JPG (92976 bytes)gk67frtns.JPG (89952 bytes)gk67pfns.JPG (93439 bytes)gk67dflp.JPG (85216 bytes)gk67pfpp.JPG (90199 bytes)

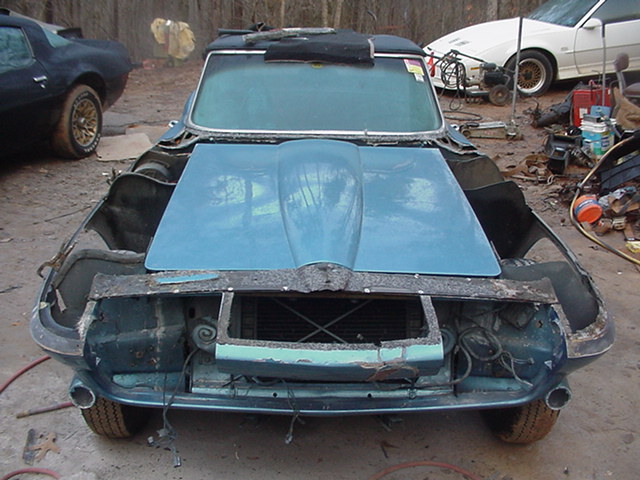

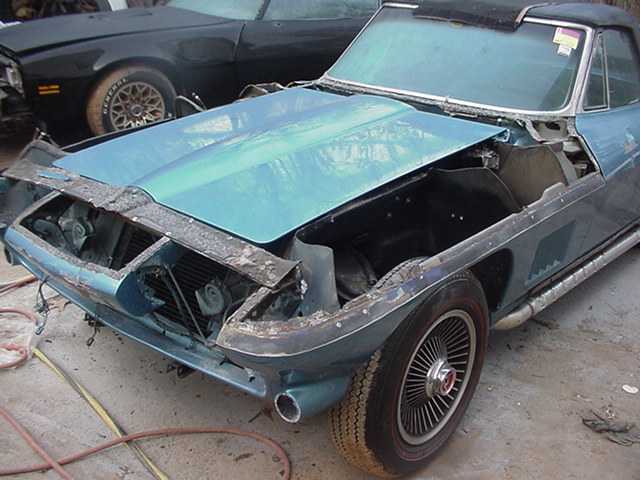

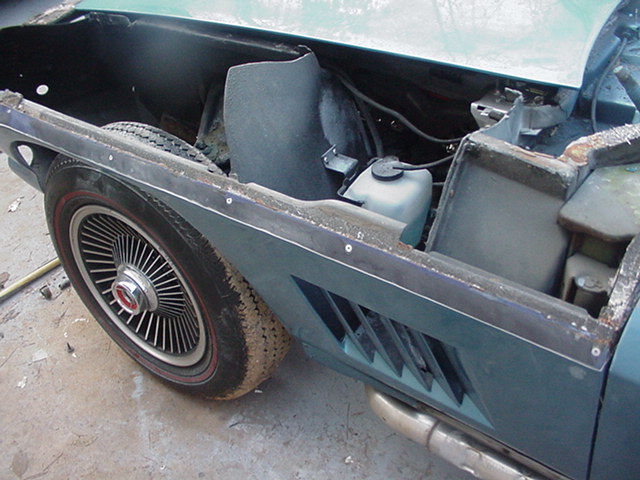

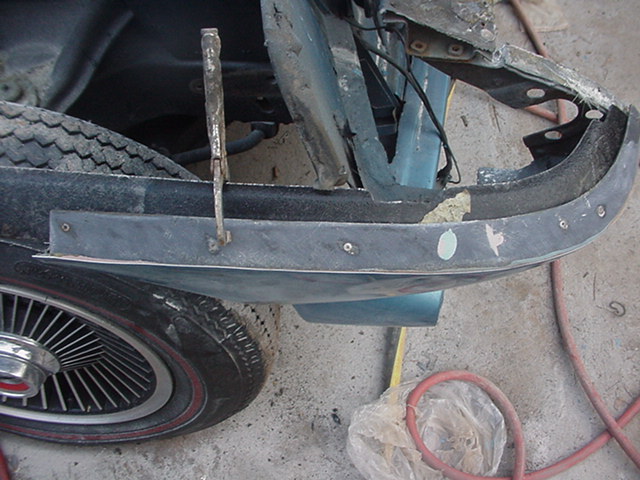

Here are pics of the car with the old hood surround removed. With the surround removed, it is easy to spot old repairs and prior damage. Pop rivets shown in pictures should have been removed after bonding. In some places I removed over 3/4" of filler that covered these up.

gk67dfpp.JPG (90612 bytes)gk67ohs.JPG (133077 bytes)gk67hlps.JPG (87729 bytes)gk67hlds.JPG (86552 bytes)gk67ifps.JPG (86684 bytes)

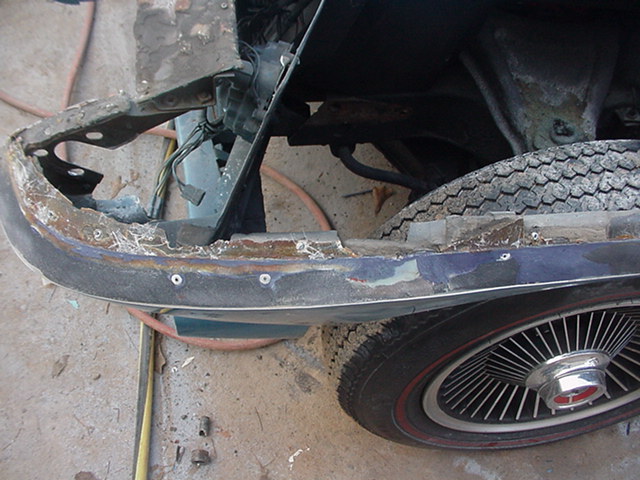

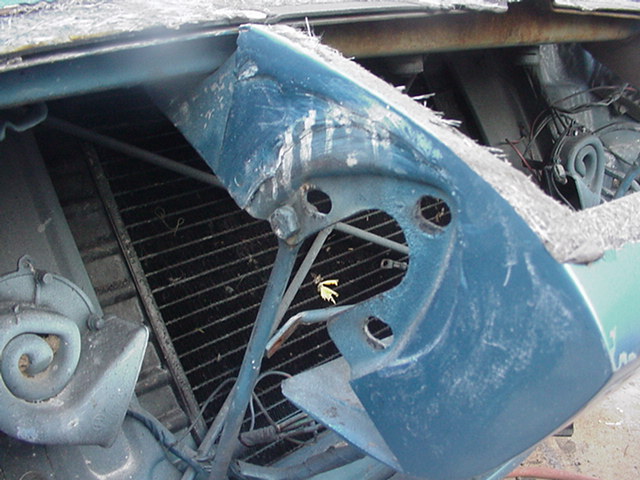

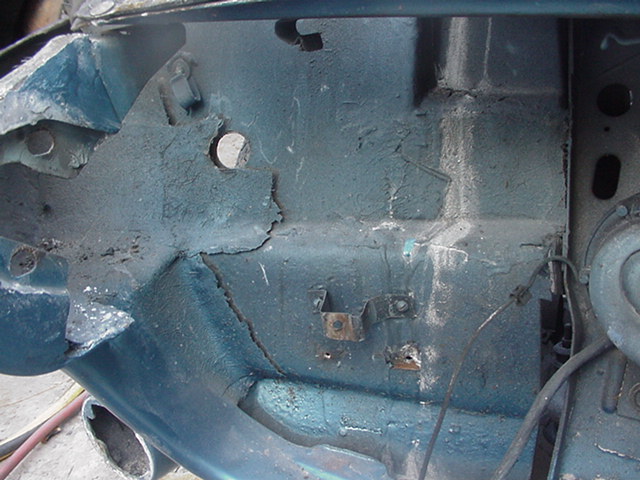

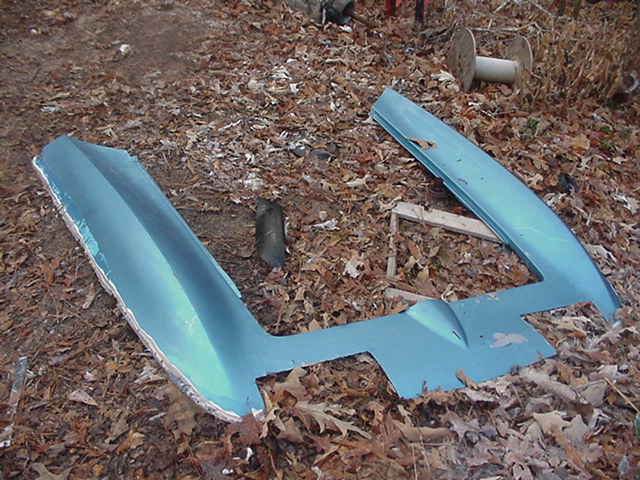

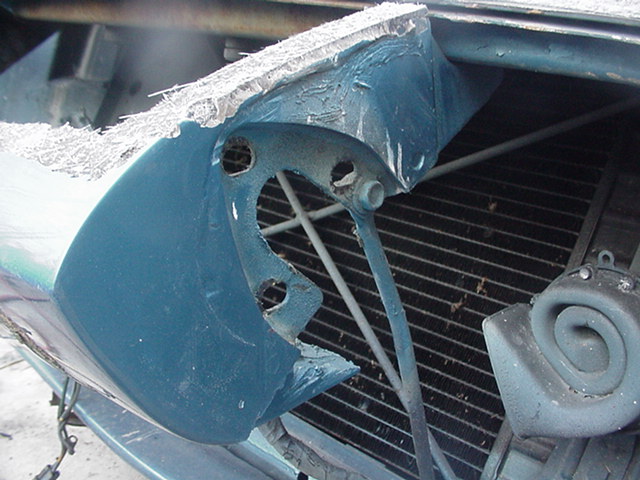

These are more pics of the prior repairs made to the front of the car. It appears that the only remaining orig front end parts are the pass side louver panel, pass side inner fender, and possibly the hood. The surround had been replaced once, then a drivers upper fender replaced at a later date.

gk67nhs.JPG (74386 bytes)gk67dr1.JPG (75049 bytes)gk67pr1.JPG (76771 bytes)gk67pd.JPG (64441 bytes)

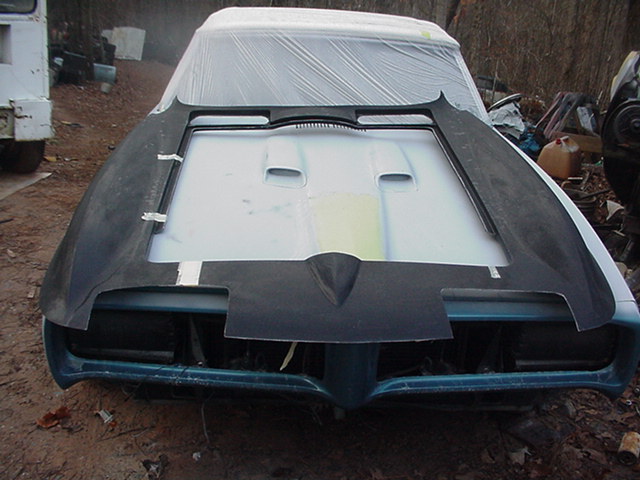

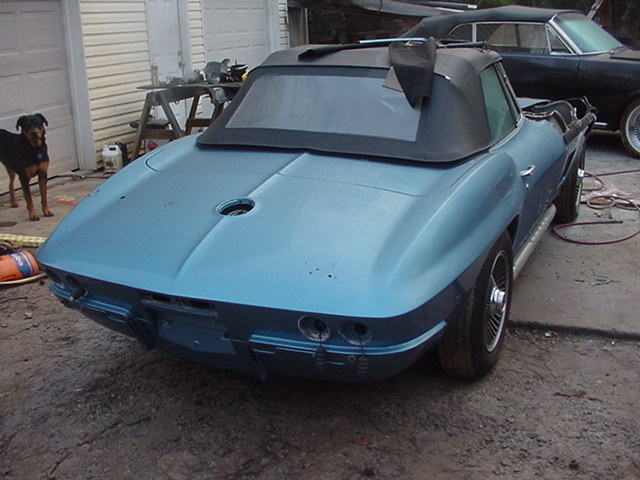

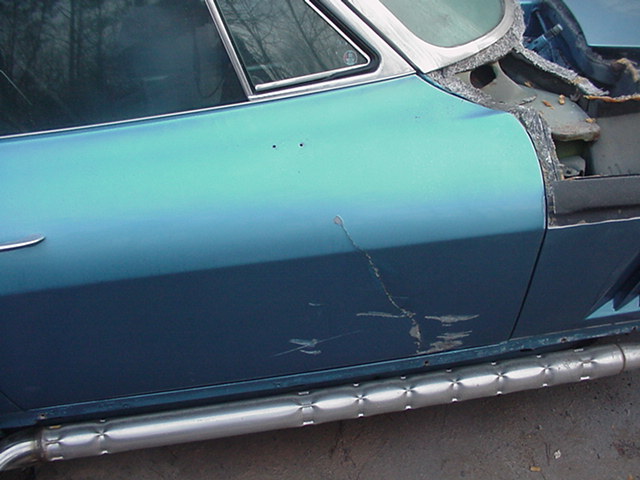

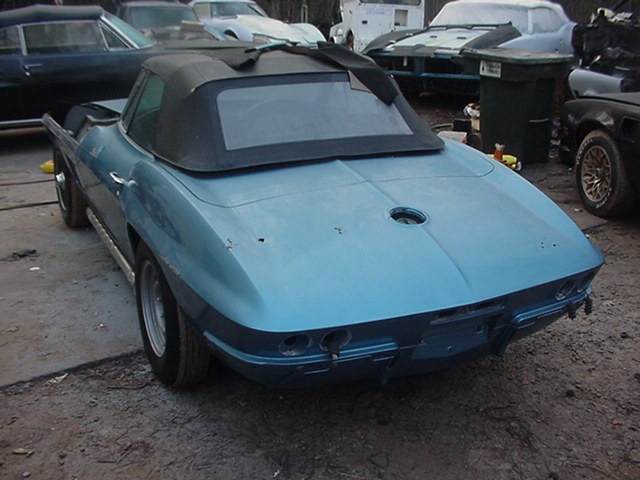

Here is the new surround, along with pics of the disassembled car.

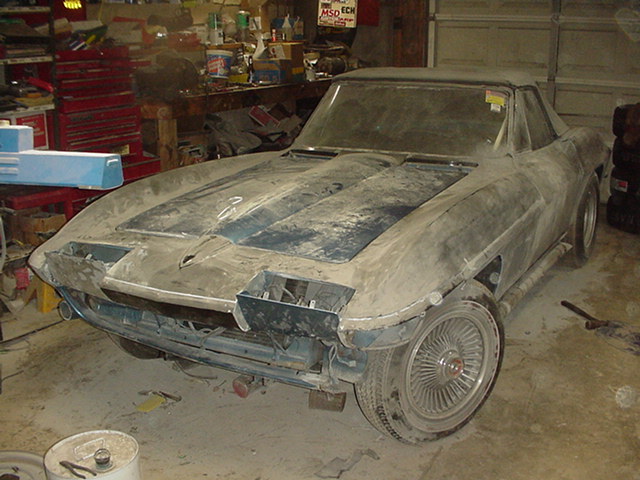

gk67nsdf.JPG (88503 bytes)gk67nsds.JPG (87386 bytes)gk67nspf.JPG (83489 bytes)gk67nsps.JPG (91068 bytes)

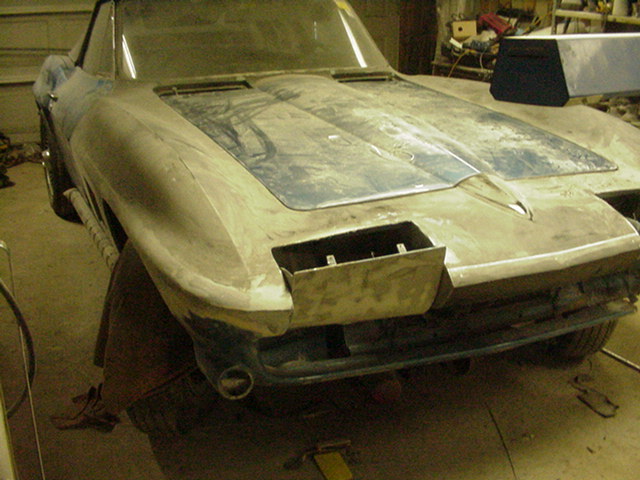

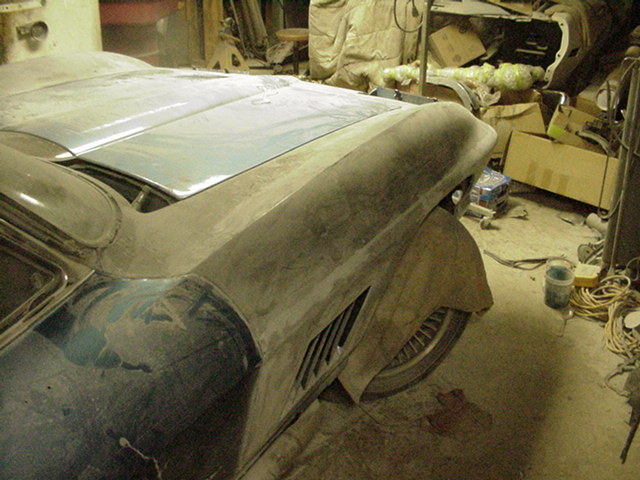

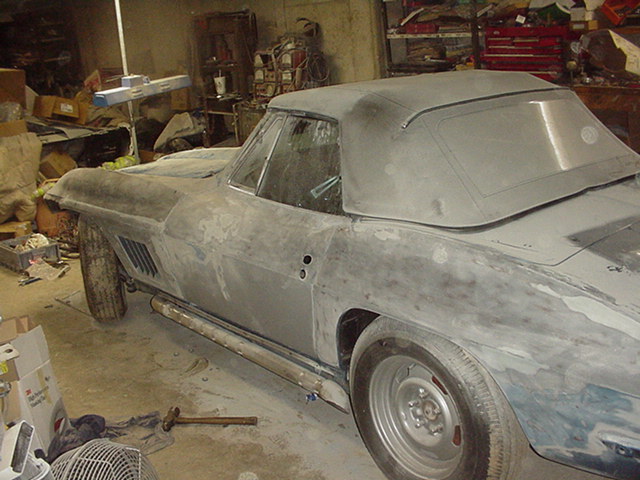

Here are some pics of the new surround now on the car. I am waiting on one parking light panel to complete front end. Headlights, door and hood fit are now being worked on. Fresh fiberglass will need to sit for several weeks to "cure" before final bodywork,

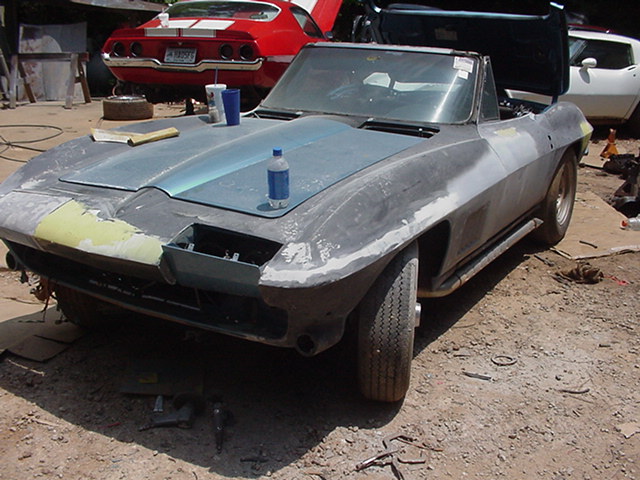

GKdf10.JPG (95652 bytes)GKpf10.JPG (81580 bytes)gkprime1.JPG (86230 bytes)gkprime2.JPG (81557 bytes)

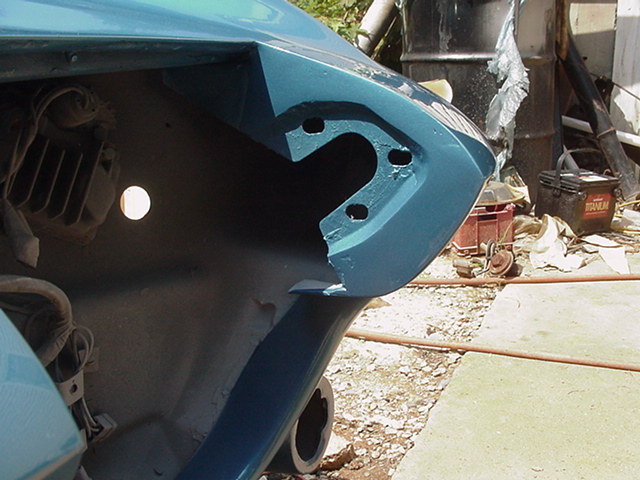

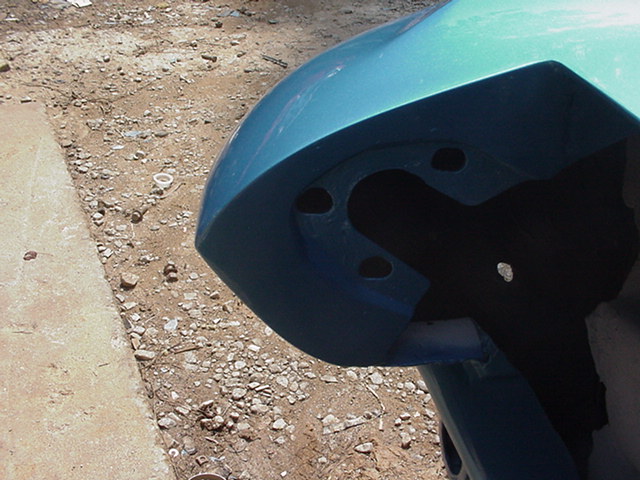

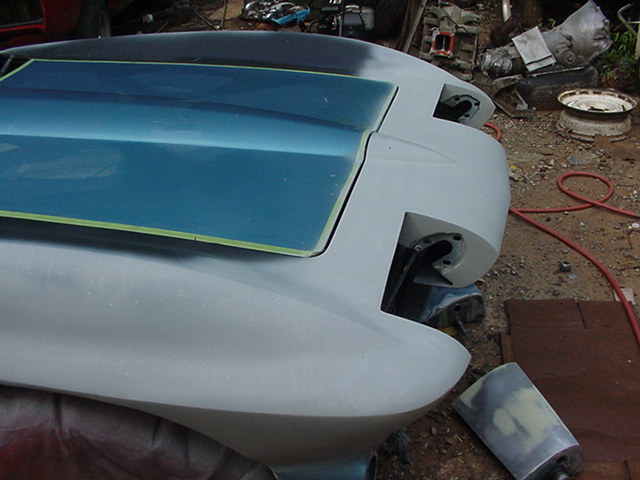

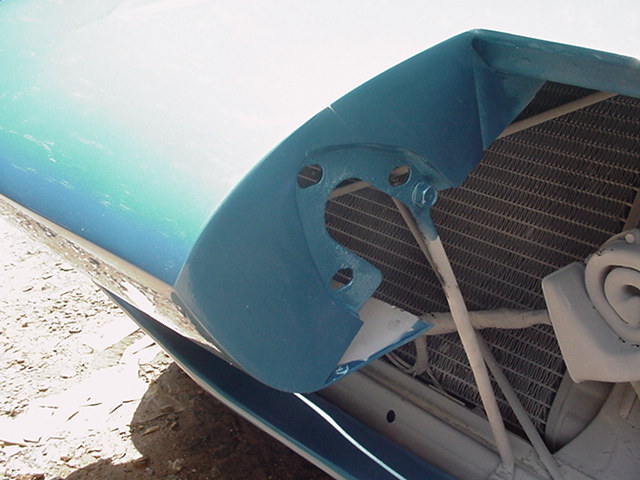

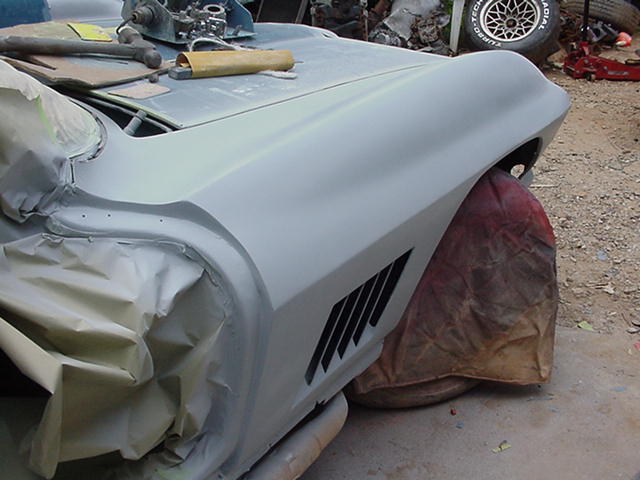

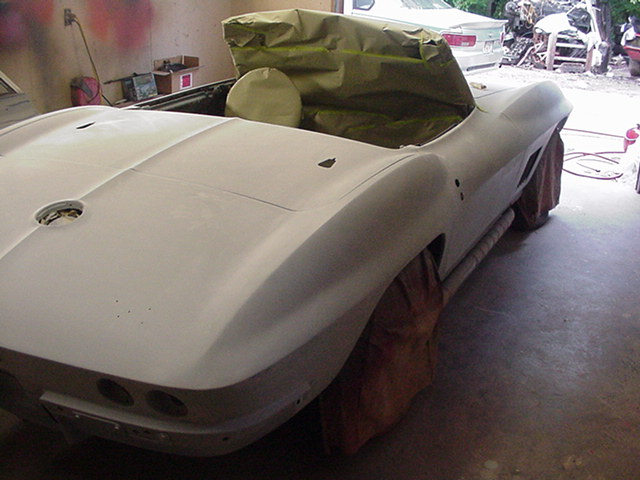

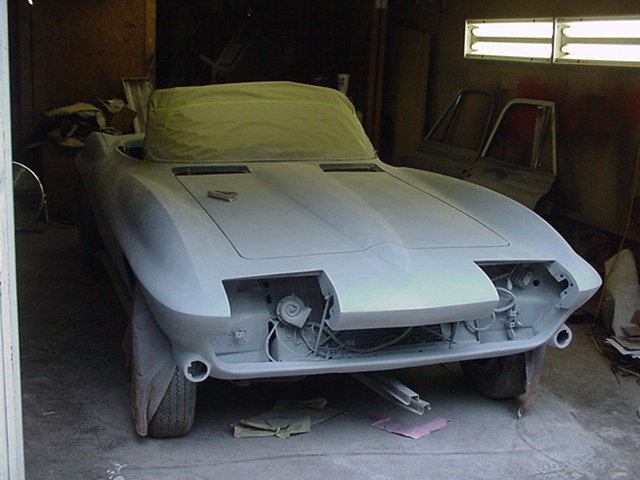

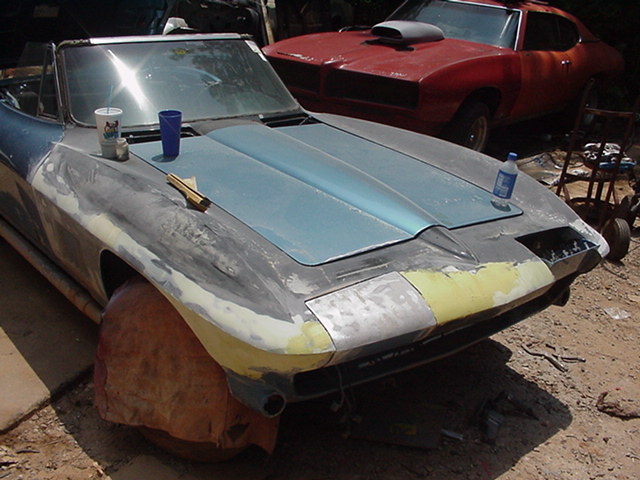

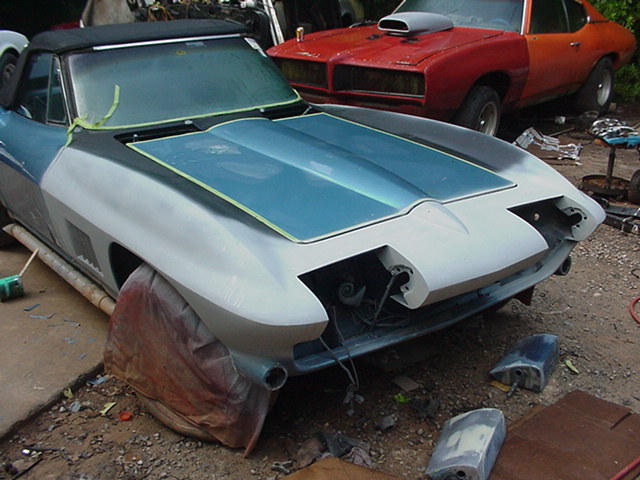

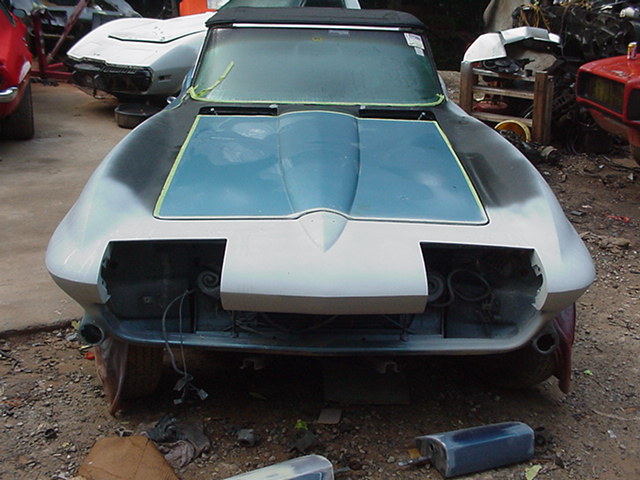

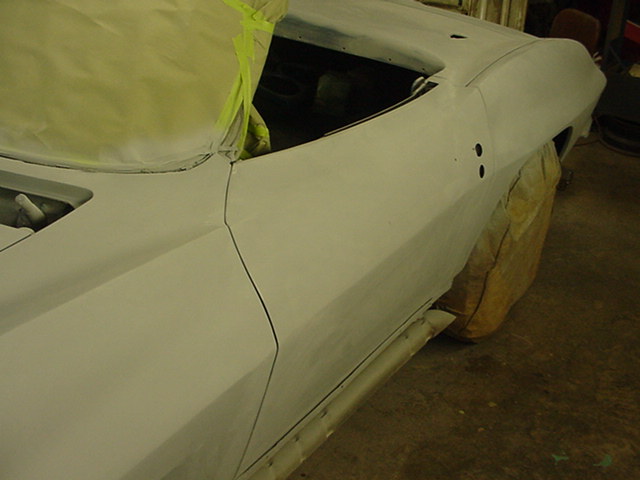

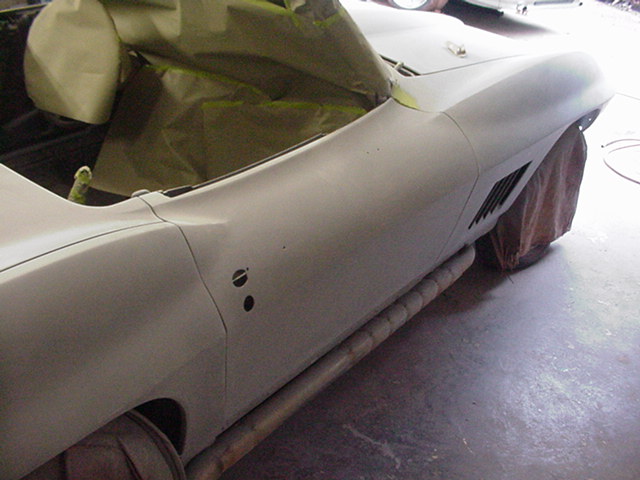

Body work on seams and fitting headlight buckets. I am trying for a very even 3/32 headlight gap. next on to priming and blocking.
